Flussonic Media Gateway MG01

Bridging the Gap Between Traditional Broadcasting and OTT Streaming

Flussonic Media Gateway MG1 is a high-performance, stand-alone server designed to meet the needs of the broadcasting industry. With built-in SDI capture/playout cards and 10Gbps NIC interfaces, this appliance is the ultimate solution for modern video transmission formats, seamlessly integrating SMPTE 2110, NDI, and SDI with the OTT world.

Up to 10 FHD

Streams at 60 fps

SMPTE 2110

Ingest/Output

Up to 8 3G-SDI

Featuring Dektec DTA-2178

Key Features

Powerful Hardware: Powered by the Intel i9-14900HX CPU, the MG1 is capable of encoding up to 10 Full HD streams at 60 fps.

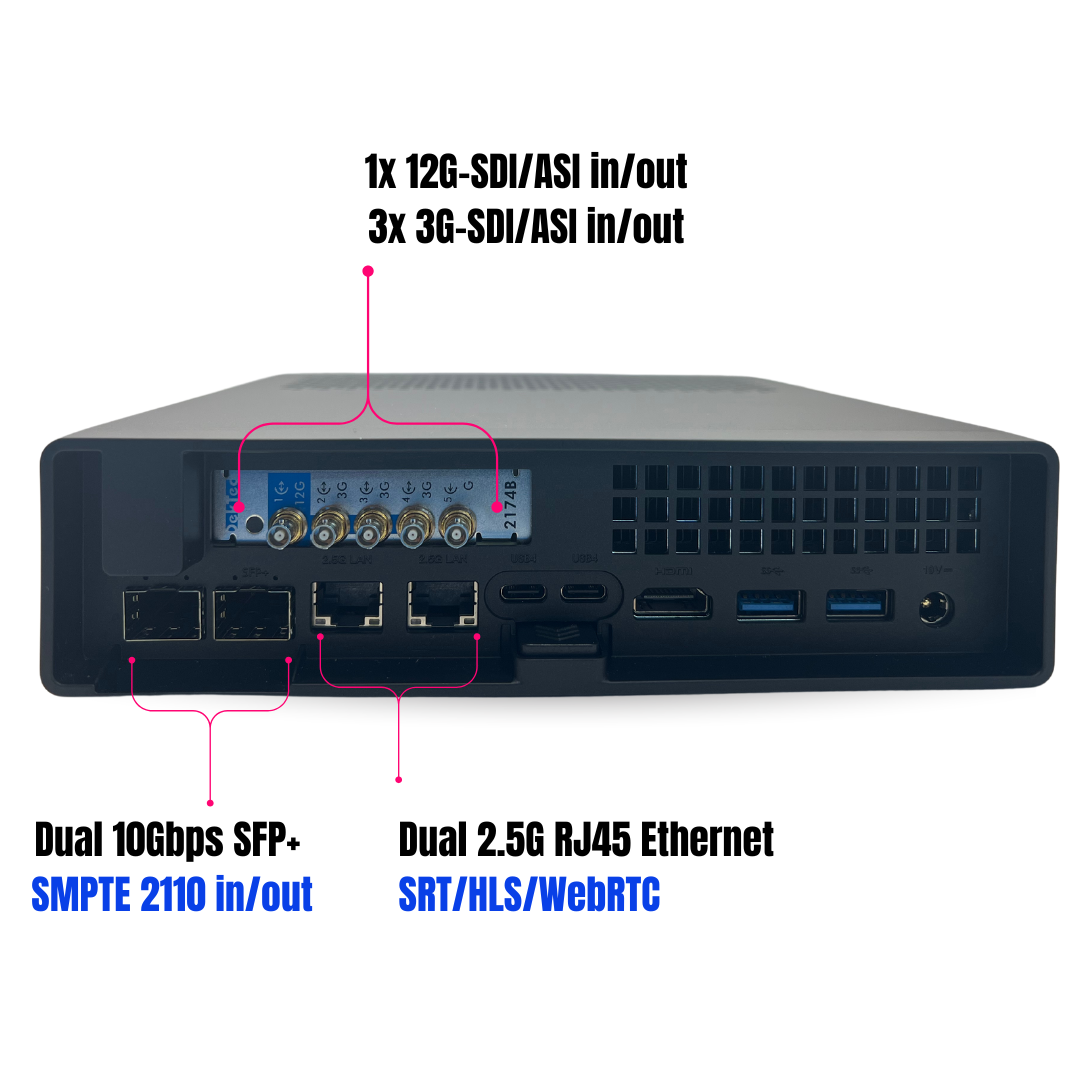

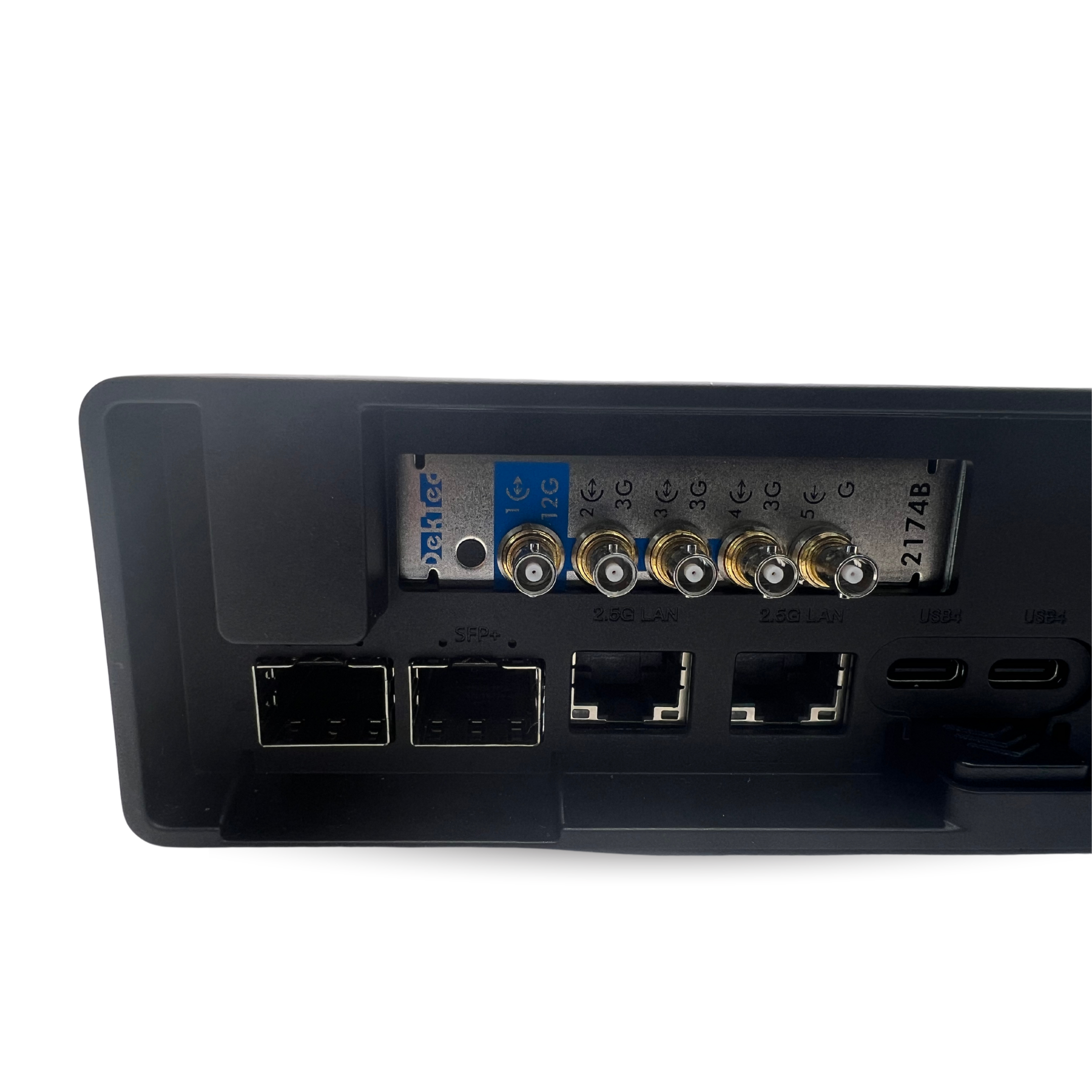

Versatile Connectivity: Equipped with dual 10 Gbps SFP+ ports and two 2.5 Gbps Copper Ethernet ports, ensuring robust connections for SMPTE 2110 ingest/output, NDI, SRT, and more.

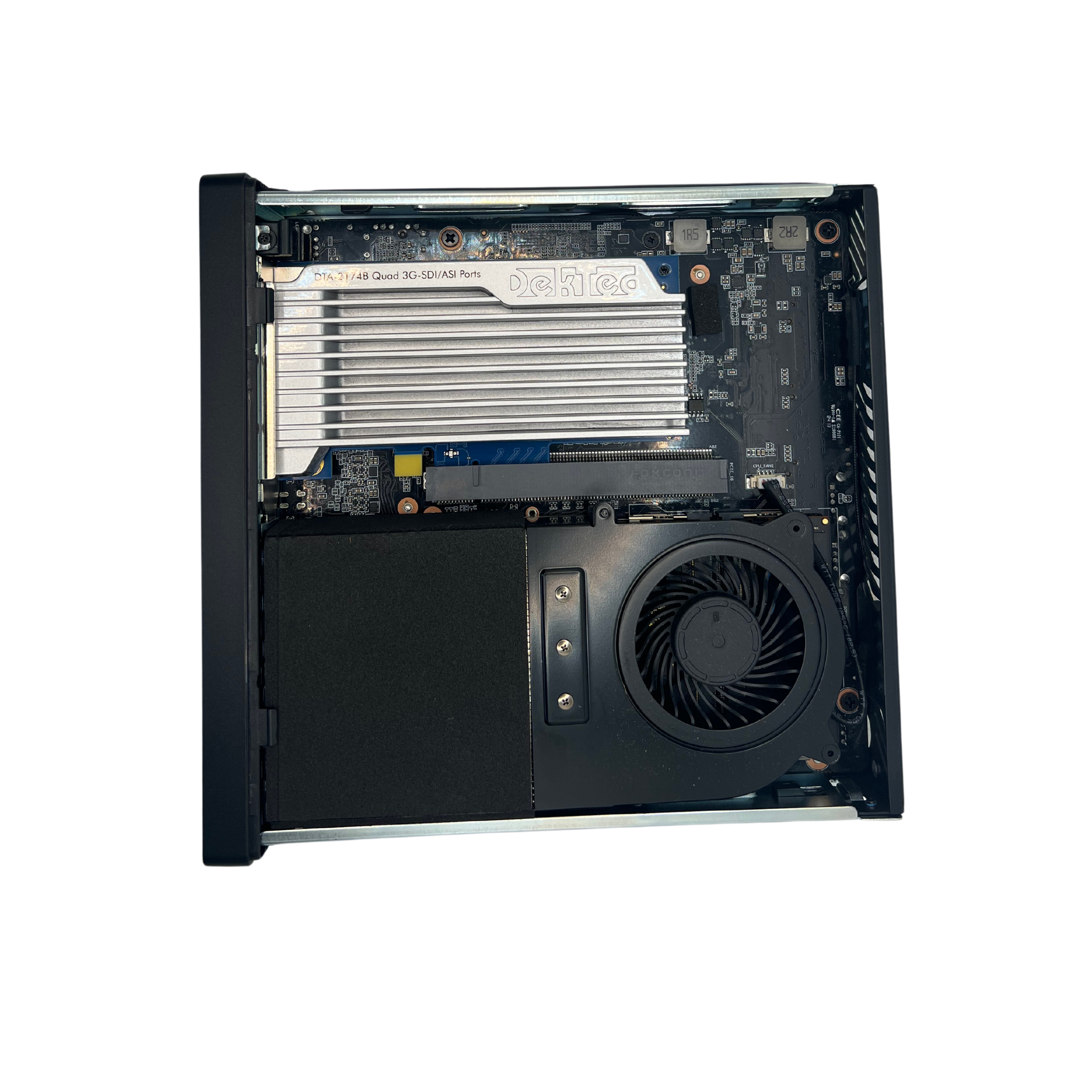

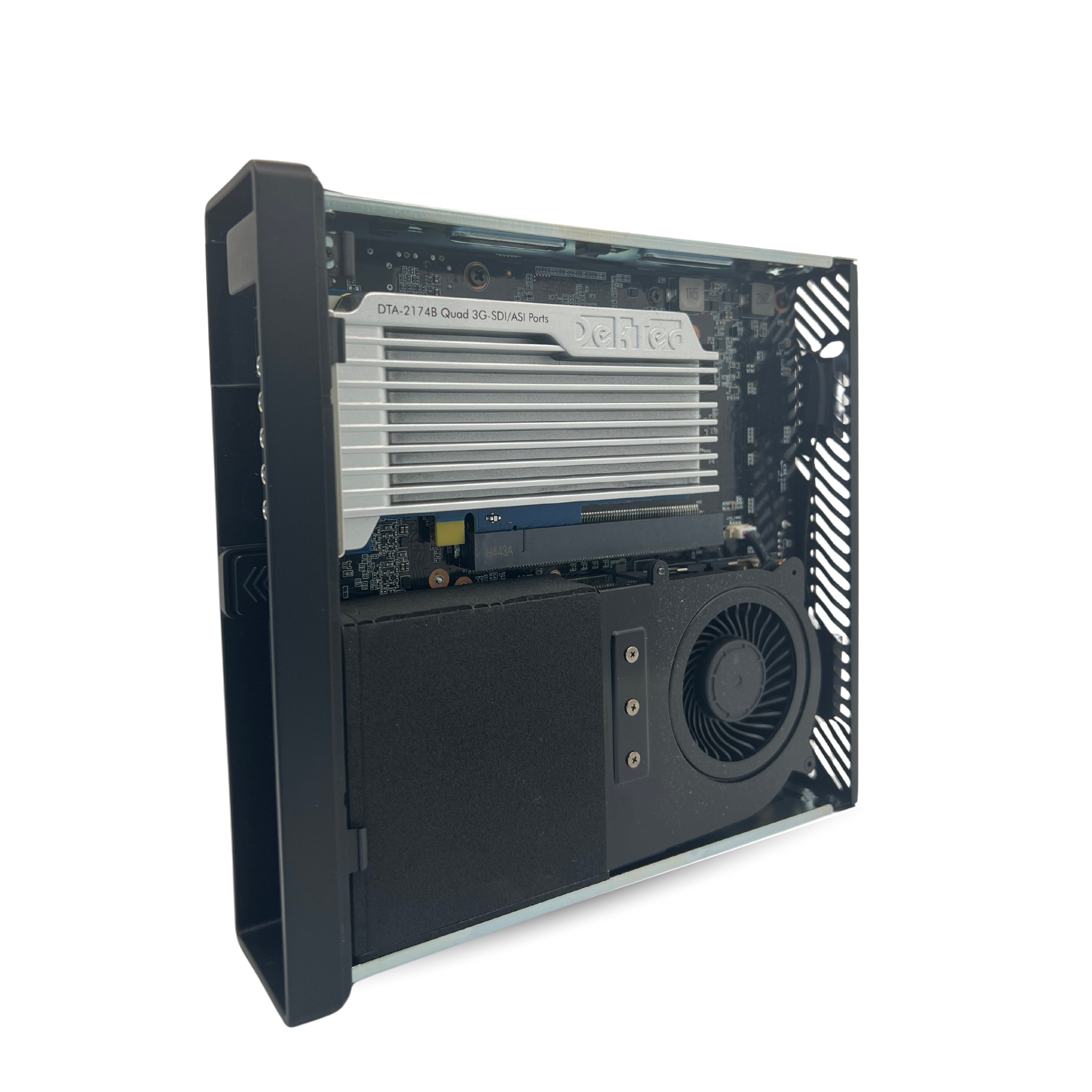

Integrated SDI Card: Features the Dektec DTA-2178 for high-quality SDI capture and playout.

Optimized for Streaming: Built-in Flussonic Media Server software provides full support for modern streaming protocols, including LL-HLS, MPEG-DASH, and WebRTC

Comprehensive Protocol Support

MPEG TS Ingest
SPTS, MPTS

Streaming Protocols RTSP, RTMP, HLS, MPEG-DASH, WebRTC...

Cloud and DRM Integration Amazon S3, Widevine, Fairplay...

Advanced Video Processing

Transcoding and Scaling

Support for MPEG2, H.264/AVC, H.265/HEVC, AV1 codecs.

Logo Insertion and Mosaic Generation

Customize and enhance your video streams.

Redundancy and Failover

Ensure continuous operation with automatic recovery and Flussonic cluster support.

Carrier-Grade Reliability

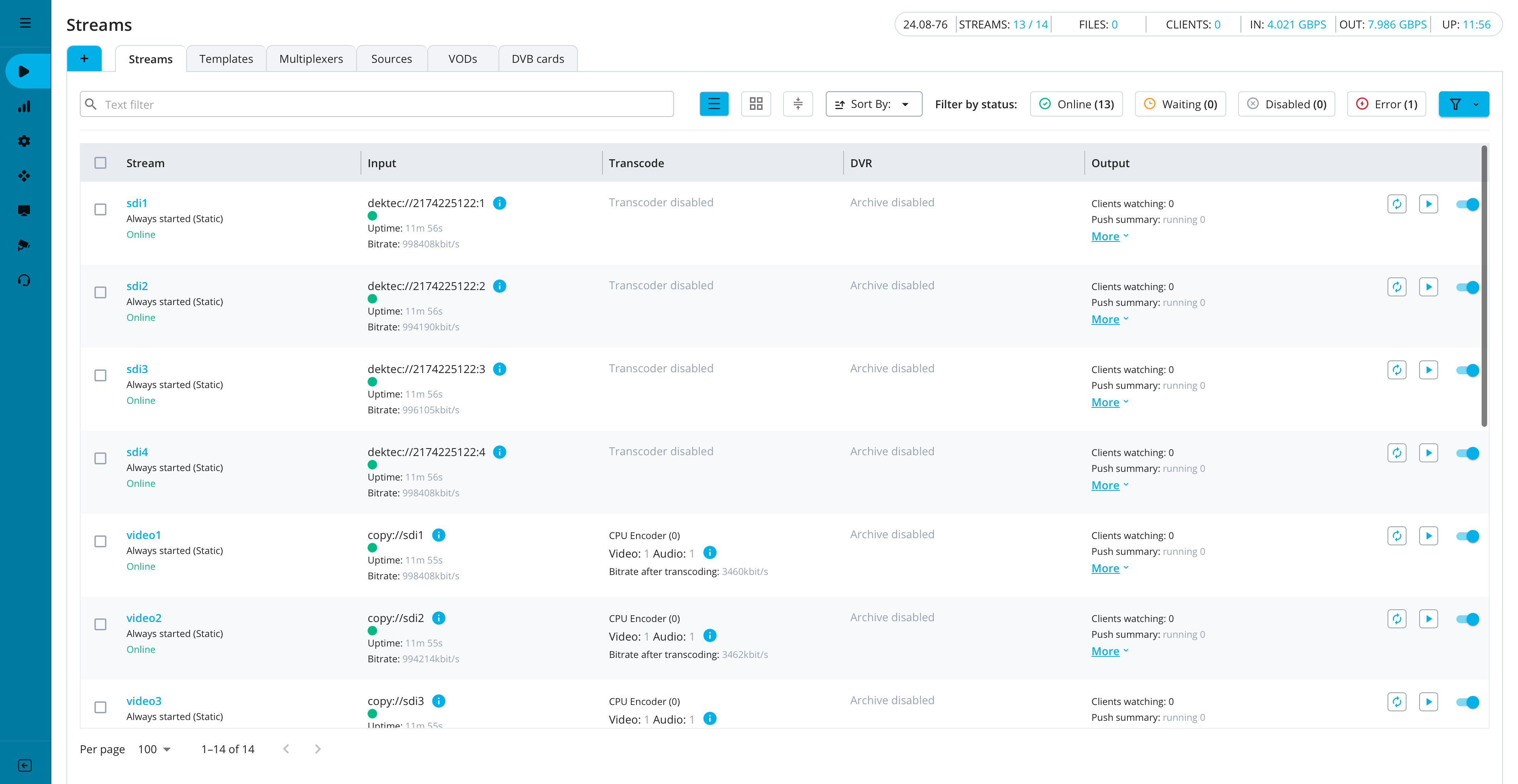

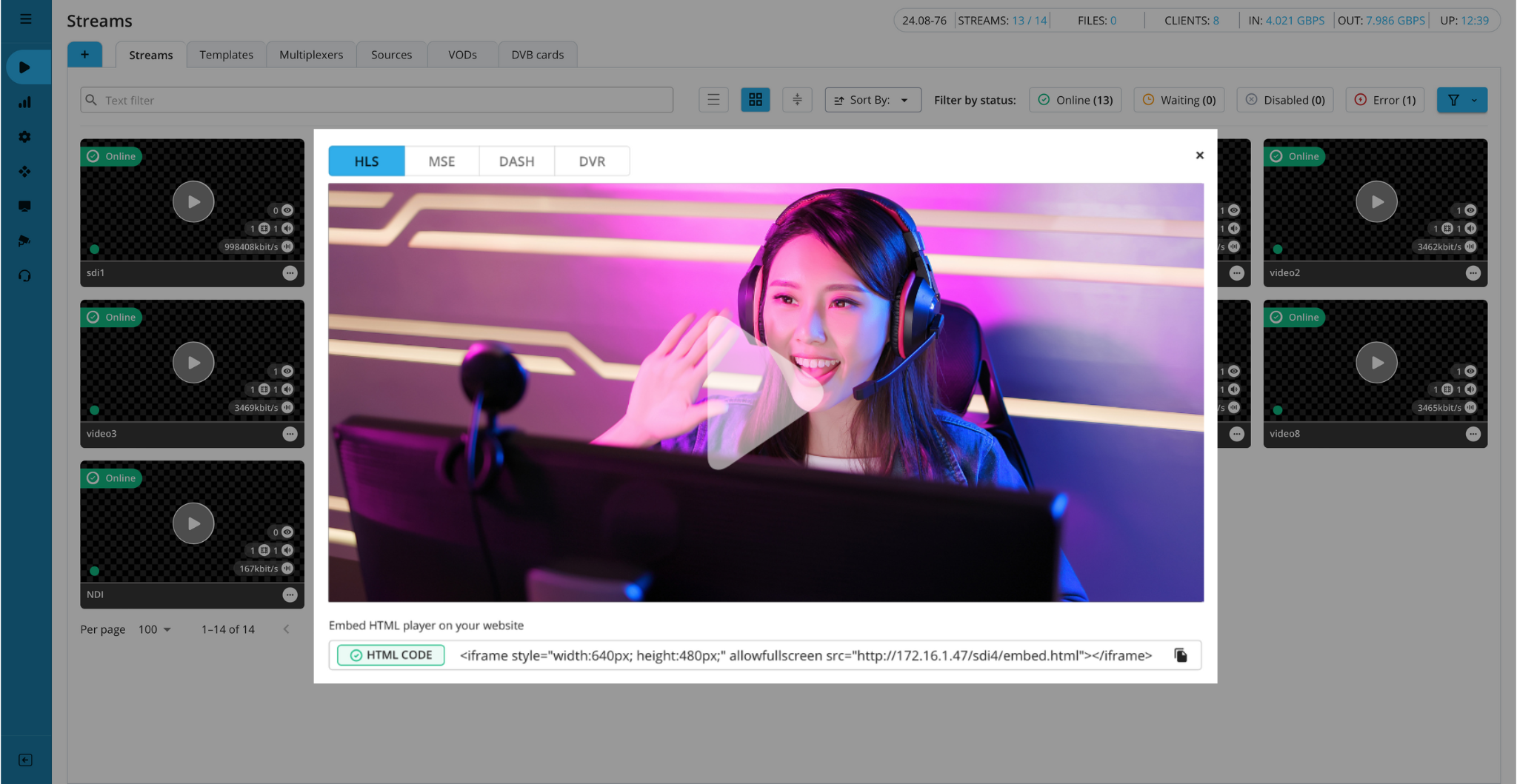

Handle all operations through a web-based user interface, incorporating SNMP and HTTP API for complex settings. Thoroughly approved under RoHS, CE/FCC Class A, and UL norms.

Discover the Flussonic Media Gateway Series

The MG1 is just the first in our new line of media gateway appliances. Each model is designed to bridge the gap between traditional broadcasting equipment and modern streaming demands, offering unmatched flexibility, performance, and reliability.

Technical Specifications

Experience up to 4K (interlaced and progressive input, progressive output) resolutions, in various formats such as RTSP, RTMP, HLS, MPEG-DASH, WebRTC, and more, along with cloud storage integration and application RAID for data safety.

Input Resolutions

Up to 4K (Interlaced and Progressive)

Streaming Protocols

RTSP, RTMP, HLS, MPEG-DASH, WebRTC, MSE-LD, M4S, M4F

Output Resolutions

Up to 4K (Progressive only)

Storage and Redundancy

Support for cloud storage integration and application RAID for data safety.

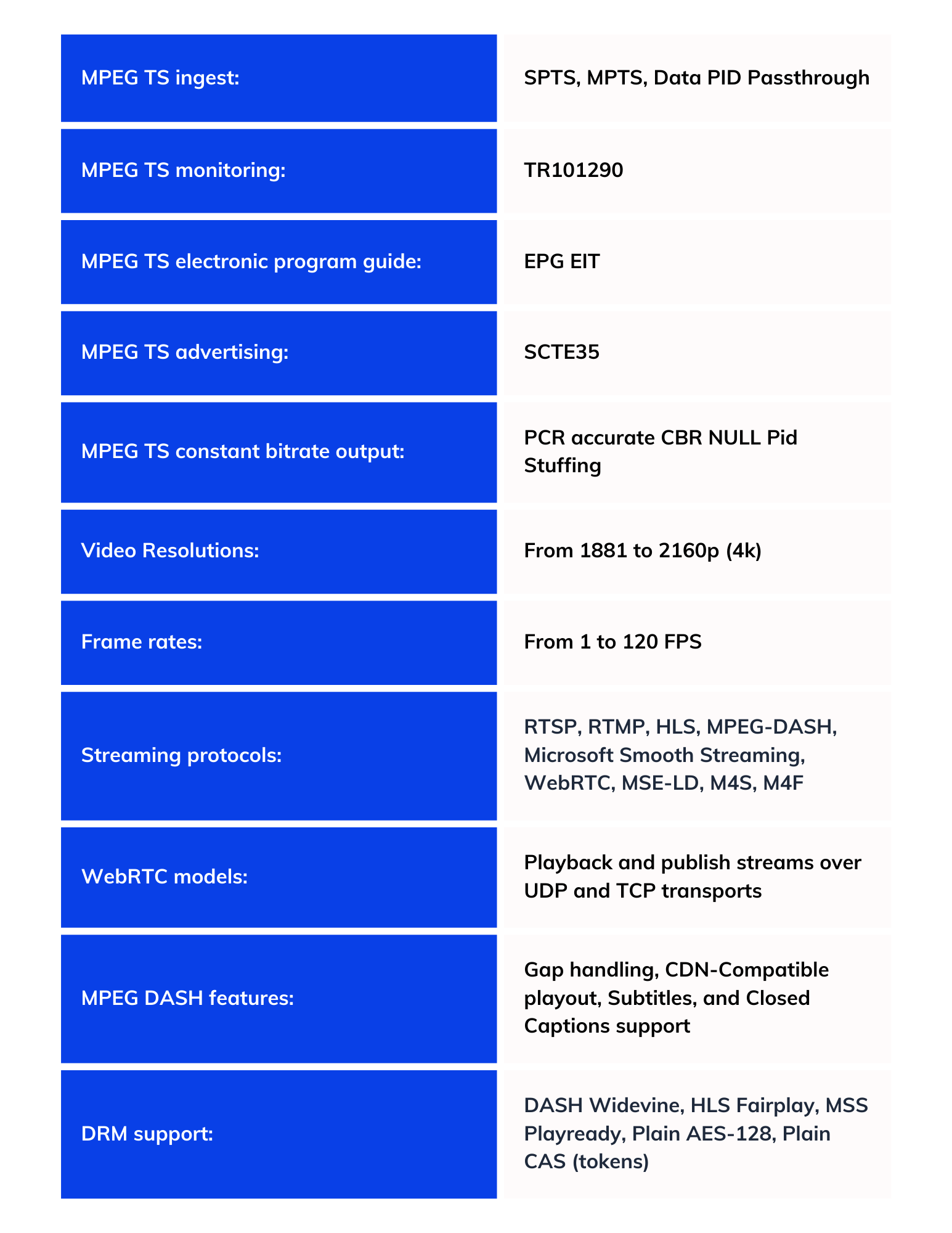

Protocols and Formats Support

FAQ

Frequently asked questions

We have put together some commonly asked questions.

What types of video streams can the Flussonic Media Gateway MG01 encode?

The Flussonic Media Gateway MG01 can encode up to 10 Full HD streams at 60 fps, supporting various codecs including MPEG2, H.264/AVC, and H.265/HEVC.

How does the MG01 integrate with existing broadcasting infrastructure?

The MG01 features built-in SDI capture/playout cards and supports multiple protocols such as SMPTE 2110, NDI, and SDI, allowing for seamless integration into traditional broadcasting setups as well as modern OTT streaming workflows.

What connectivity options are available with the Flussonic Media Gateway MG01?

The MG01 is equipped with dual 10 Gbps SFP+ ports and two 2.5 Gbps Copper Ethernet ports, ensuring robust connections for various ingest and output formats, including SMPTE 2110 and NDI.

Is the Flussonic Media Gateway MG01 compliant with industry standards?

Yes, the MG01 is fully certified with regulatory standards such as RoHS, CE/FCC Class A, and UL, ensuring carrier-grade reliability for broadcasting operations.

Flussonic Media Gateway MG1

The ultimate solution for broadcasters looking to seamlessly integrate SMPTE 2110, NDI, and SDI into their OTT workflow.
